Result Analysis of Liquefied Soil

Post by qwertyasdfg » Tue Jan 20, 2026 3:54 am

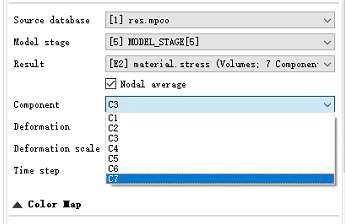

When simulating liquefiable soil using PressureDependMultiYield material and brickUP elements, in the result viewing, the material stress components are displayed as C1 to C7. What do they represent?
Attachments
Top
STKO Team
Posts: 3066
Joined: Tue Oct 29, 2019 8:45 am

Re: Result Analysis of Liquefied Soil

Post by STKO Team » Mon Feb 16, 2026 8:40 am

it's because that materials models gives the stress (first 6 components) plus an internal variable (the 7th component)
