Re: Load-displacement curve
Posted: Fri May 21, 2021 12:45 pm
by Clarabella
Dear Mari,
Horace and I modified your model. Attached the version with the structured mesh and modified bc. We hope this is useful.
Regards
HH and C
Re: Load-displacement curve
Posted: Fri May 21, 2021 1:11 pm
by Clarabella
These are the results. We think that there is a problem with the support.
Regards
Re: Load-displacement curve
Posted: Fri May 21, 2021 3:12 pm
by STKO Team

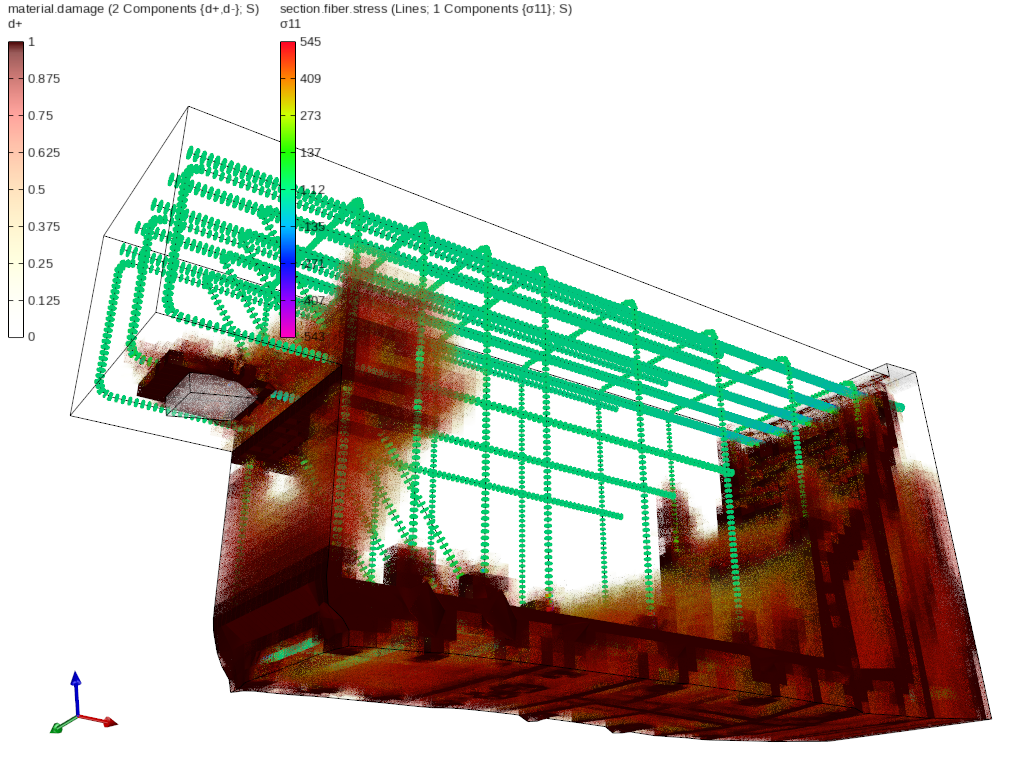

You can also make a finer mesh to visualize better the crack pattern:
- deck.png (678.3 KiB) Viewed 2264 times
Re: Load-displacement curve
Posted: Fri May 21, 2021 3:22 pm
by Horace Horsecollar
Cool picture! It is quite evident that the problem is how the support is modeled.
Re: Load-displacement curve
Posted: Sat May 29, 2021 9:37 am
by mari.95
Sorry, I'm just looking at your suggestions, I'll try to model the support differently. Thank you very much for helping.
