Problem in result visualization

[AntoMarinelli]

Dear STKO,
when I run this model, the post processor does not allow me to see the results properly.
I attached the file.

Thanks in advance.
Best regards
Antonella

[marafini.f]

Hi Antonella,
what problem are you encountering specifically? I could run and open the results properly. I remind you that if you are running in parallel, try not to open the mpco database before the analysis is completed, or at least stop the analysis before loading it.
Let me know specifically what is the problem.F
Francesca

[AntoMarinelli]

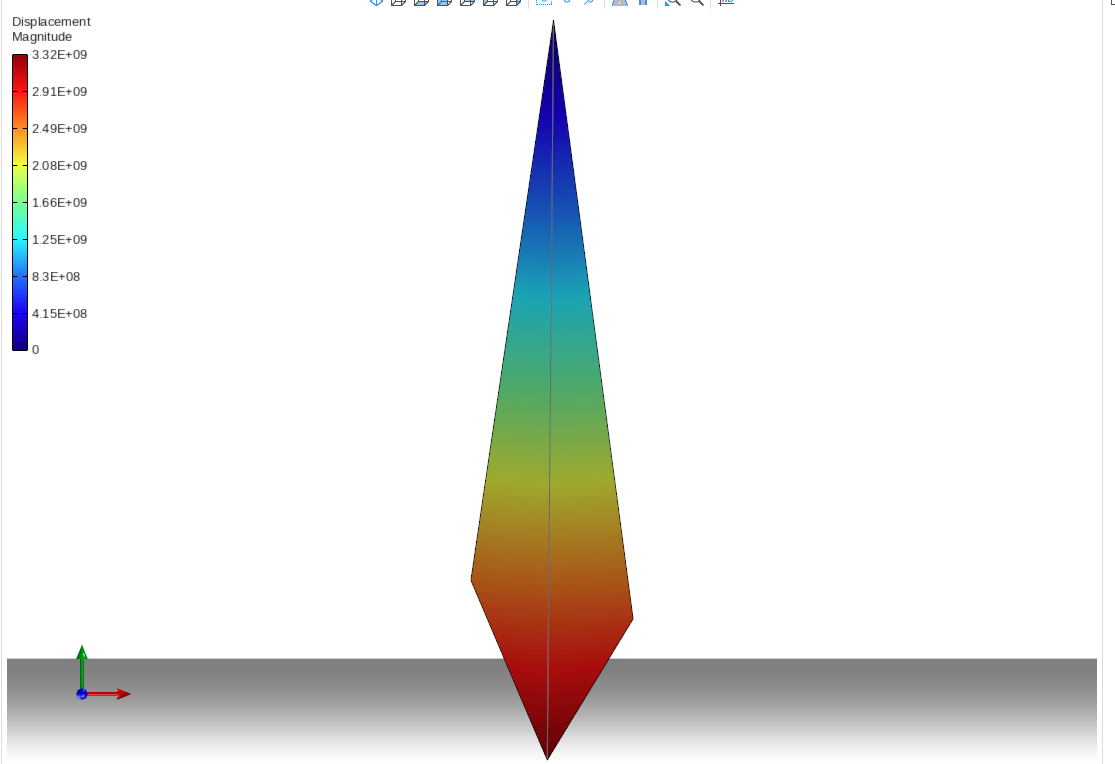

The beam appears as in the photo. It is very strange.

[marafini.f]

You have very high displacements, so the deformed shape of the beam is distorted. Did you check at different time steps? and the load you are applying or the duration of your analysis?

[AntoMarinelli]

I tried to change but it doesn't work because the beam is not plotted in frist steps. Is your visualization the same?

[marafini.f]

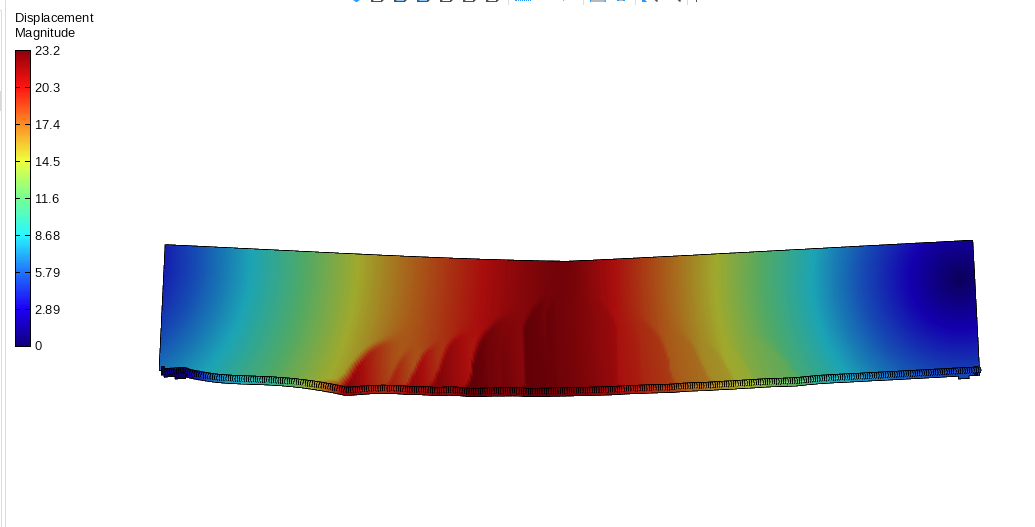

this is what I see when I run your model as it is


I found some mistakes in your model. You had applied the pin condition to both supports, and also did not apply the equalDOF to the left side interaction infact as you can see from the picture it was breaking on one side.
Here is the corrected file

H1500_FRC75.zip

(736.48 KiB) Downloaded 203 times

[AntoMarinelli]

Thank you a lot.

Antonella =)

[marafini.f]

you are welcome!
