Analysis did not converge

Post by Ekrem Arda » Sat Mar 11, 2023 9:25 am

Hi STKO team,

I m Arda. I m trying to learn this program for my thesis. I made model but I get errors mostly its because of gravity analysis I will add my model and SS of my errors. Can you help me. I m stuck at same place for a long time
Attachments

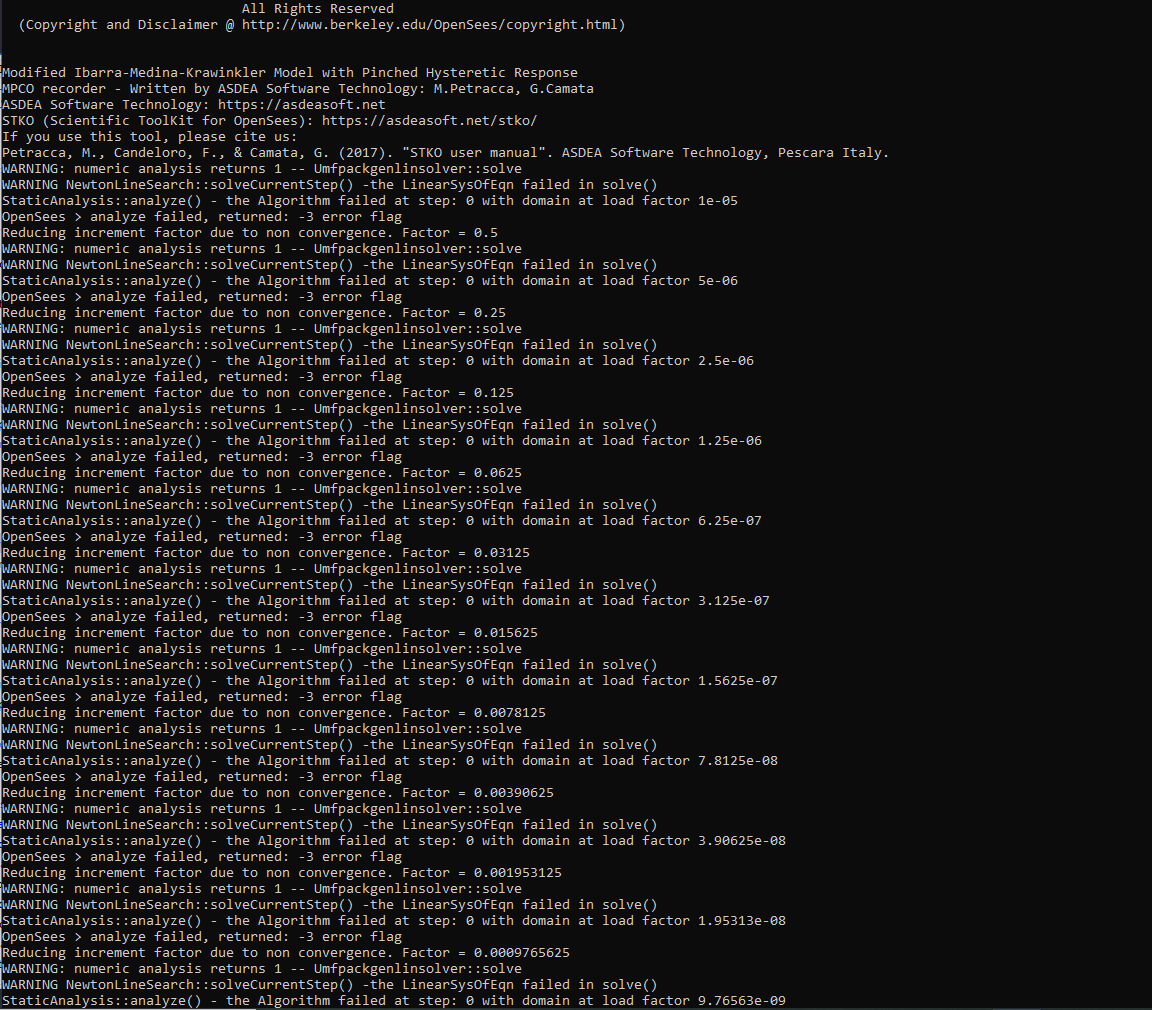

Screenshot 2023-03-11 122157.png
Screenshot 2023-03-11 122157.png (136.14 KiB) Viewed 1041 times

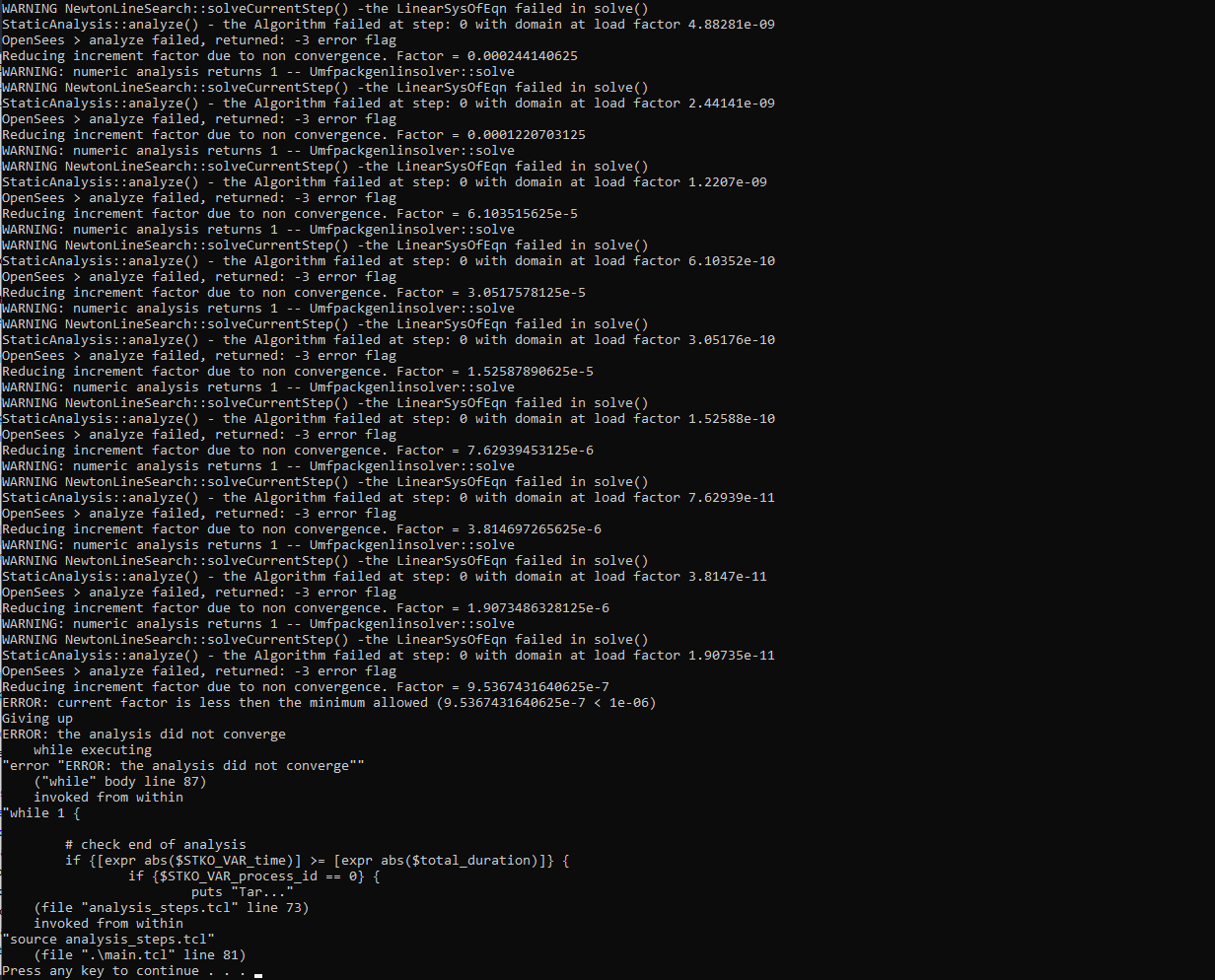

Screenshot 2023-03-11 122135.png
Screenshot 2023-03-11 122135.png (148.79 KiB) Viewed 1041 times
Model.rar
(120.08 KiB) Downloaded 134 times
Top
STKO Team
Posts: 3066
Joined: Tue Oct 29, 2019 8:45 am

Re: Analysis did not converge

Post by STKO Team » Mon Mar 13, 2023 10:43 am

Double-check your beam elements.
There's something wrong:
  • In the section aggregator for beams, you used the concrete material for Vy and Vz... are you sure? You should use a proper shearforce-sheardeformation, not a compression-only stress-strain law... as you did for the columns.
  • Then you defined hinges at the beam-ends, but you assigned a material in only 1 DOF. It will be singular for all other 5 DOFs.
I don't fully understand what you are trying to do with the beams
Top
