CUT SECTION SHEAR WALL
Posted: Wed Dec 07, 2022 6:43 am
by allano89
Dear STKO team
You provide me a TCL script for get the moment and shear in shear walls. But I want ask for the cut side section, because I want to know if I need consider the direction of the edge or the face. Please your help
Re: CUT SECTION SHEAR WALL
Posted: Wed Dec 07, 2022 10:55 am
by STKO Team
In the other post I told you how the sign works here:

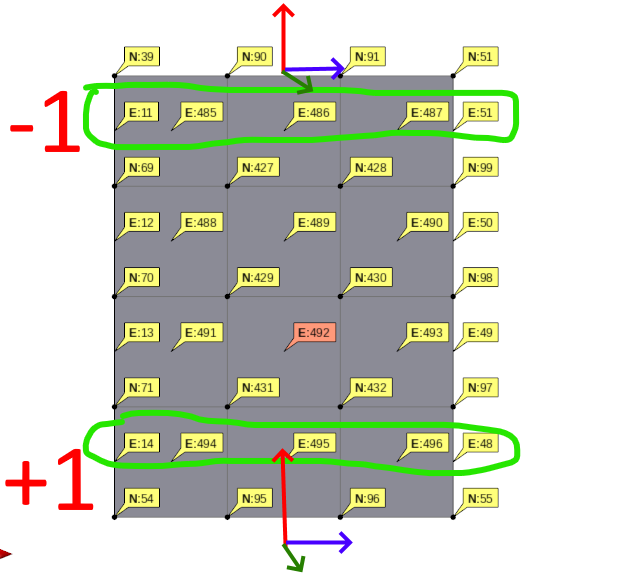

Pay attention to the "cut_sides". it should be +1 if the elements are on the +X direction of the cut, or -1 otherwise:
- Signs and elements.png (47.89 KiB) Viewed 4498 times
Re: CUT SECTION SHEAR WALL
Posted: Thu Dec 08, 2022 4:26 am
by allano89
thanks, but in the image that you send me, it should be +1.0 in the two section, why you put minus ones??
Re: CUT SECTION SHEAR WALL
Posted: Wed Dec 14, 2022 5:05 pm
by STKO Team
no... In the top-section, the elements are in the -X local direction, thus the -1
Re: CUT SECTION SHEAR WALL
Posted: Thu Dec 15, 2022 5:43 am
by allano89
thansk a lot for your answer
I don't understand. How do you know that? I've review even the local axes but the bottom and top have the same direction.
Thanks a lot for your time
Best regards
Re: CUT SECTION SHEAR WALL
Posted: Thu Dec 15, 2022 8:37 am
by STKO Team
Oh I see... there is a misunderstanding here.

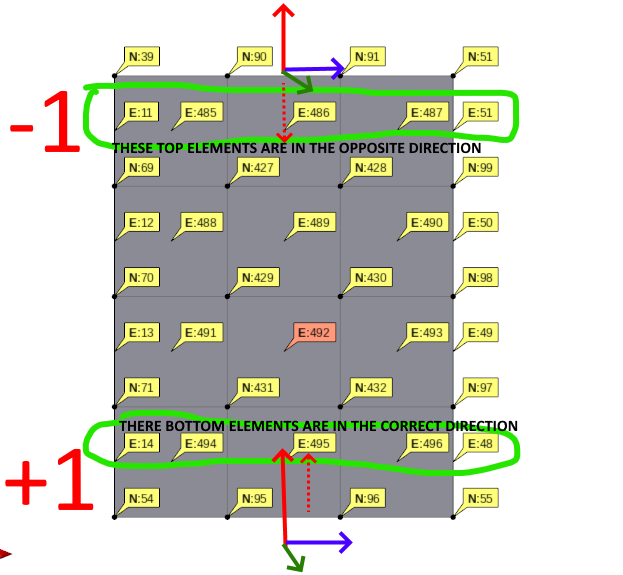

What I mean if the element's centroid is in the positive X direction (of the section-cut's local axes) -> use 1
otherwise, use -1
- Signs and elements 2.png (60.55 KiB) Viewed 4387 times
