Dear STKO team,

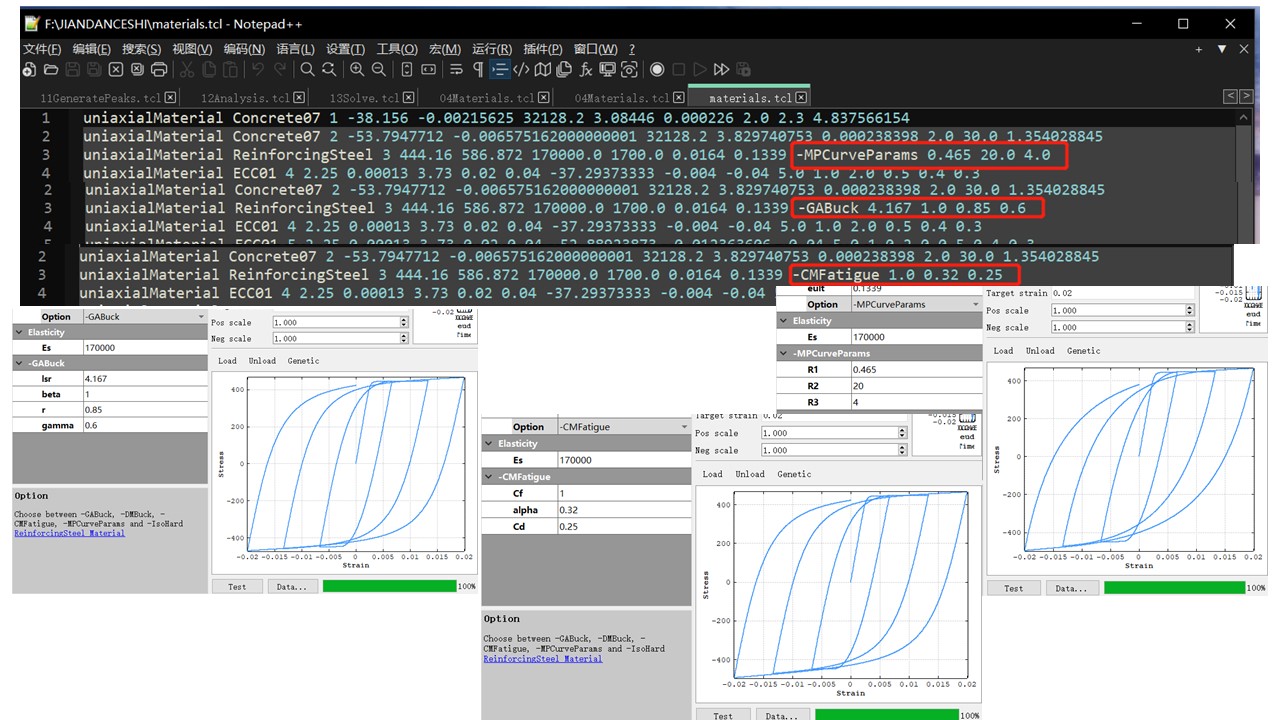

Hello, I want to know how to use GABuck, CMFatigue and MPCurveParams in the ReinforcingSteel material in STKO. For example, I have entered the above three parameters, but MPCurveParams and CMFatigue are not shown in the output TCL code. How can I combine these three parameters?
ReinforcingSteel
ReinforcingSteel
- Attachments
-
- 新建 Microsoft PowerPoint 演示文稿.jpg (248.49 KiB) Viewed 1106 times
Re: ReinforcingSteel
Thanks for noticing this.
We assumed only one option could be specified, but actually, the OpenSees material allows any combination of them.
Here's a modified python file: Unzip it and copy it to "C:\Program Files\STKO\external_solvers\opensees\physical_properties\materials\uniaxial" replacing the existing one.
This modification will be available to everyone in the next STKO version 3.2.0
We assumed only one option could be specified, but actually, the OpenSees material allows any combination of them.
Here's a modified python file: Unzip it and copy it to "C:\Program Files\STKO\external_solvers\opensees\physical_properties\materials\uniaxial" replacing the existing one.
This modification will be available to everyone in the next STKO version 3.2.0
