Stress-Strain response of Reinforced Concrete Rectangular Fiber Section

[miguelvega]

Hello everyone!

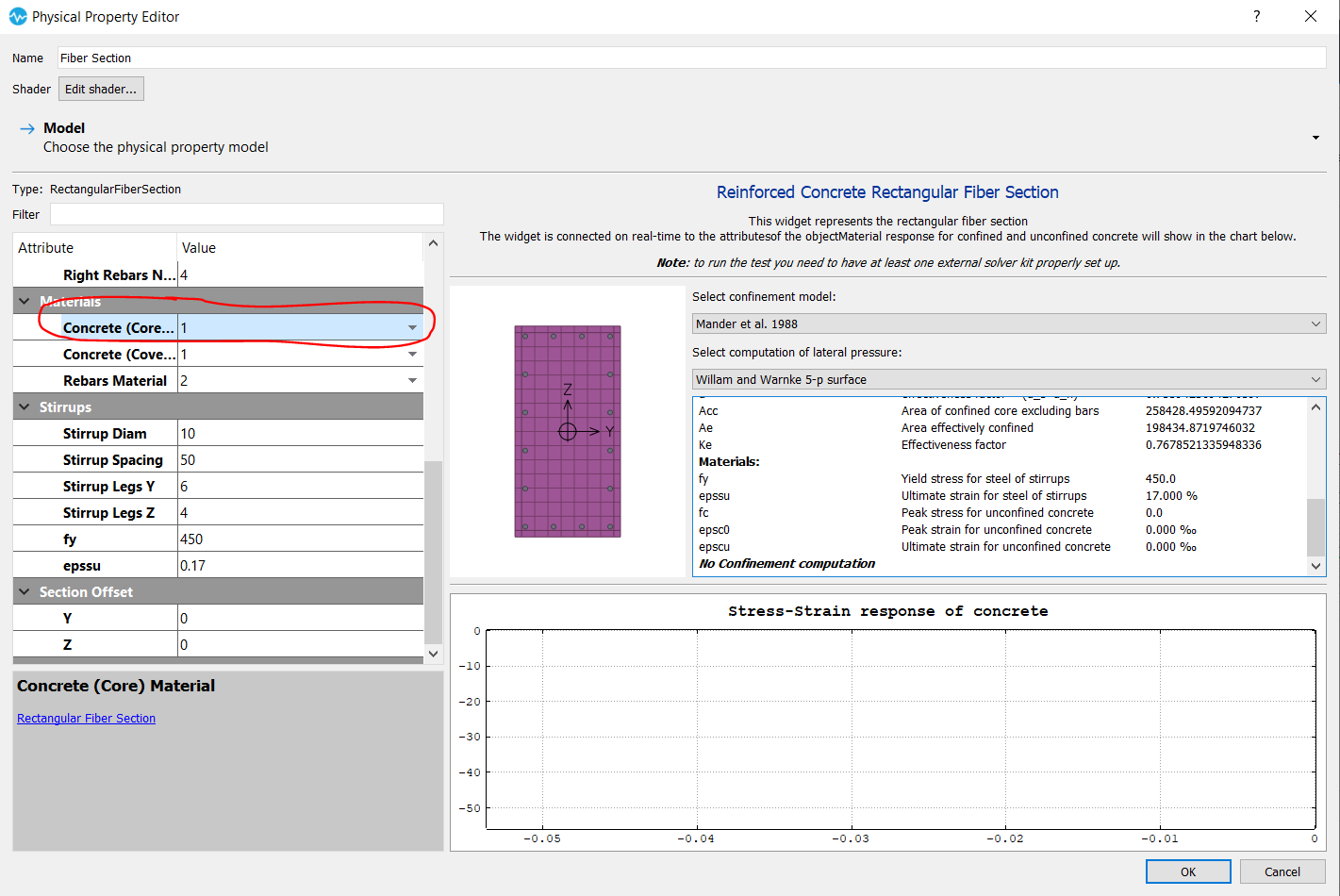

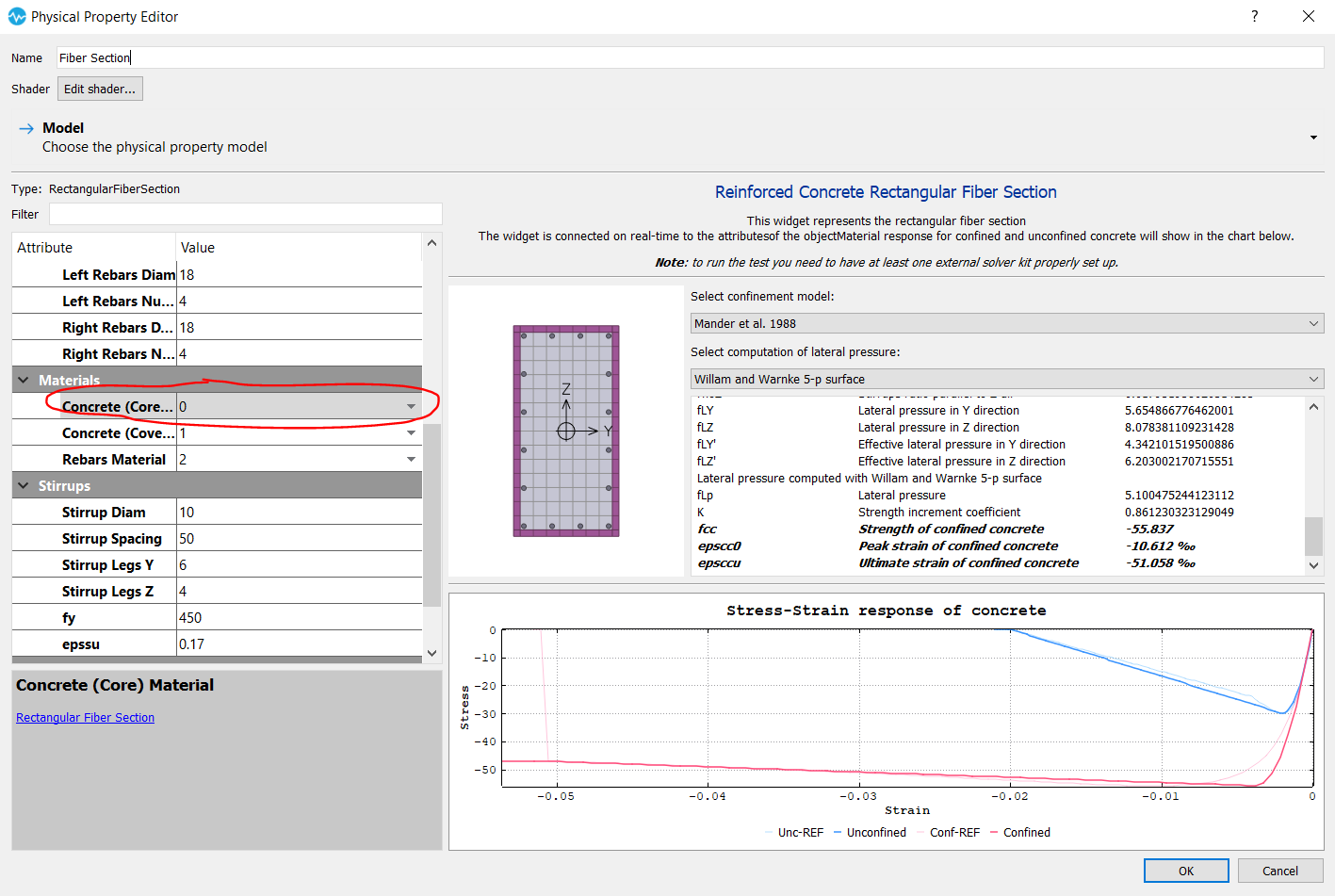

I have a problem with the Stress-Strain response of this fiber section. When I haven't assigned the Concrete (core) material yet, I can see a graphic response at least. But when I assing it, I can't see any graphic anymore. Could anyone please help me?
Thanks in advance.

[marafini.f]

Dear miguel vega,
The graph appears and disappears exactly when it is supposed to.
If you do not define the material property of the core, they will be automatically computed as confined concrete with reference to the reinforcement you define in the editor. If you do apply the core property, then the automatic computation will not be used.

You can check our manual for more info.

Enjoy your modeling
Francesca

[miguelvega]

Dear Francesca ,
Thanks for your quick response.

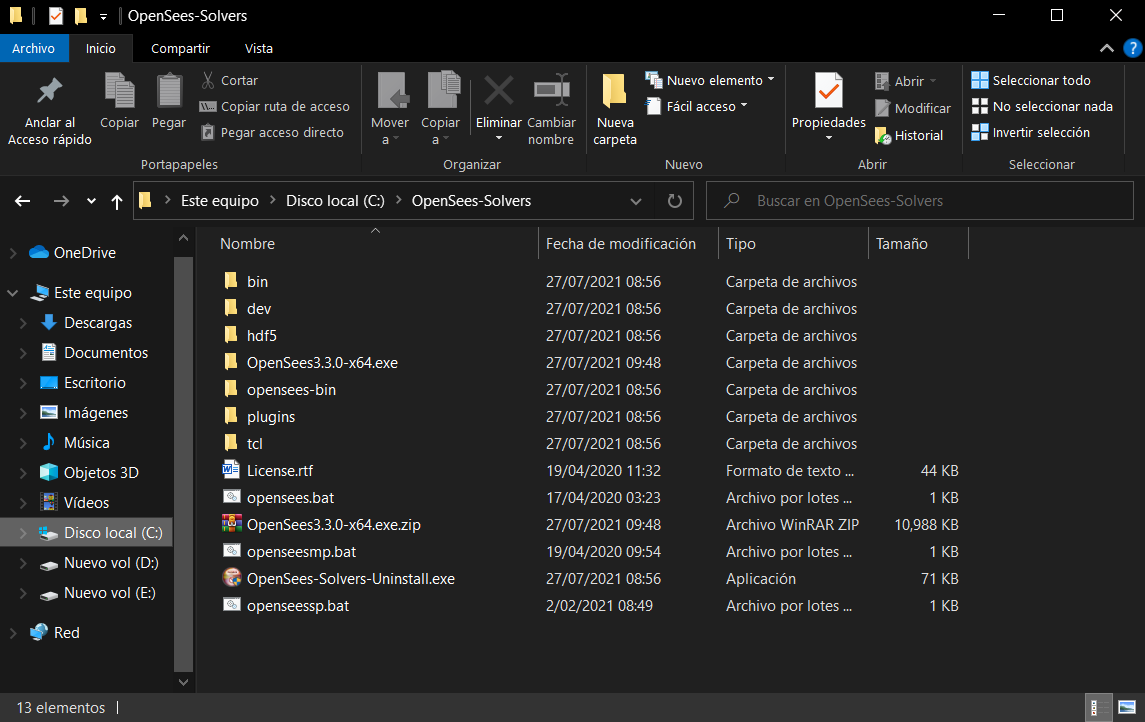

I think I get it. I was confused because I watched a tutorial video, and in the video the graph never disapears. I thought it may be a problem related with solvers installation or something like that.
On the other hand, could you please tell me if this is correct?
Thank you very much.
Regards!

Miguel vega

[marafini.f]

It looks ok to me, does it work?
