joint offsets

[Zeeshanbhat]

Dear Francesa,

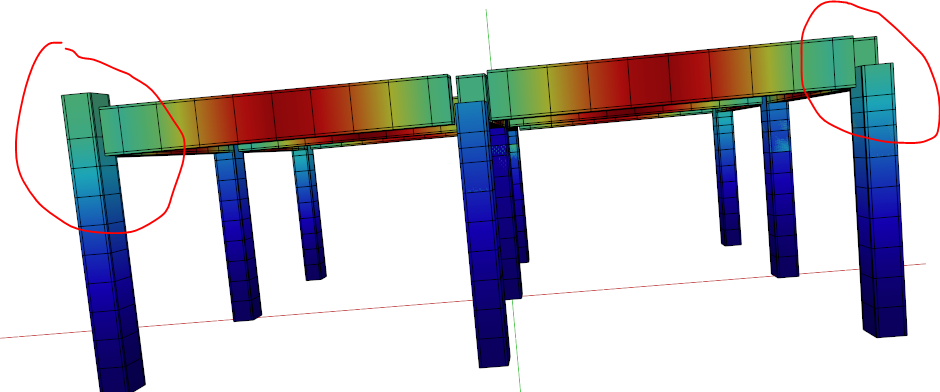

I analysed your model on joints, but I found something strange. I just changed the value of offset in Z direction. The coulmn on left side shifted up, while the column on the right shifted downwards.


. Please correct me if I am wrong.

The model is attached below.

Moreover, I analysed one of the structure using the above procedure for modelling rigid joints only. The time period becomes the function of joint material stifness. As I increase it the time period increase drastically. I am confused which value of stiffness should I use.


Regards,
Zeeshan

[STKO Team]

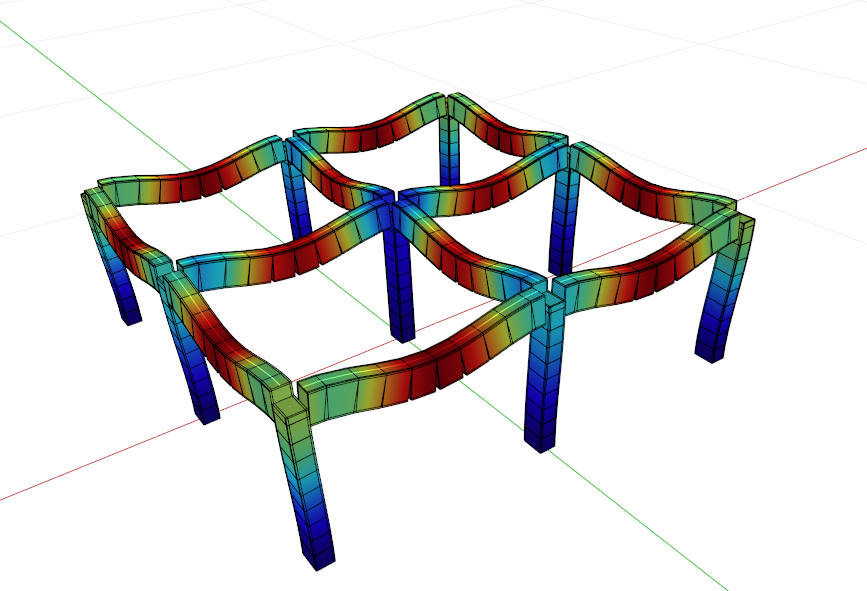

I run your model with offset values = 0.4 and I don't see any issue:

Immagine 2021-09-20 114856.png (232.33 KiB) Viewed 1147 times

What values are you using?
