Thank you for your help, that is quite informative.
I can select nodes of interest from the post-processing graphical interface, get necessary nodal results along with the node tags, copy the data and the tags into Excel, and query their coordinates from the "node.tcl" file using a simple Matlab ...

Hi everyone,

Is there a smart way to query the name (number) of selected nodes and their corresponding coordinates other than to first generate some data for those nodes, get the node numbers, and then refer to the automatically generated node.tcl file? This is becoming quite tedious once you start ...

Dear STKO team,

I have manually written a model which consists of a 2D zeroLength Element and a 2D Elastomeric Bearing (Bouc-Wen) Element , resembling a base-isolated structure. Essentially there are 3 nodes in total, all of which are located at [0, 0]; the elastomericBearingBoucWen is connected to ...

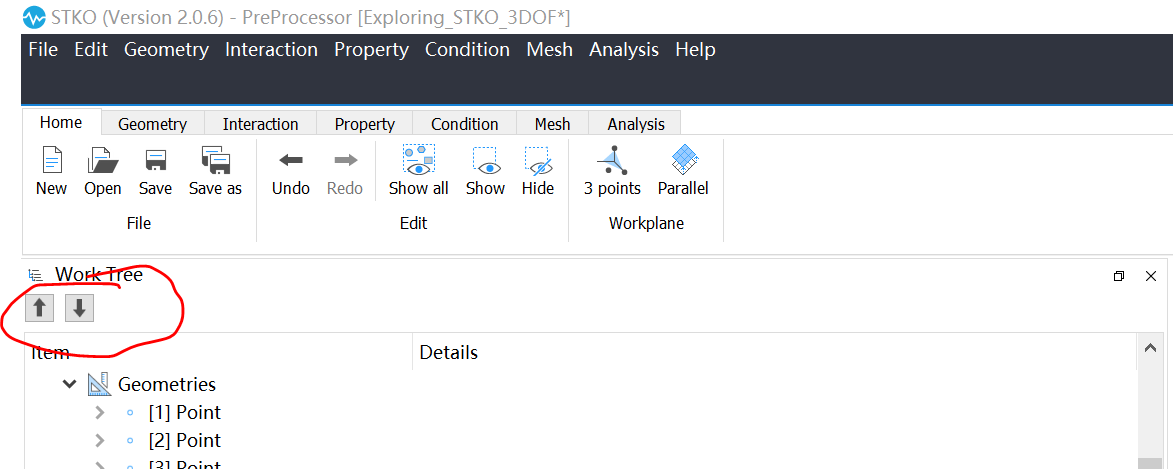

OK, I got it, it's not as straight forward as draging by cursor but fair enough

Hi,

In my Work Tree -> Analysis steps, how do I adjust the order of my steps in a convenient way? Do I always have to remove and redefine everything if errors need to be corrected or new intermediate steps to be added?
Many thanks,
Ziliang

Oh I got it...
For anyone who may have the same confusion:
You right click on the empty space near the "Home, Geometry, Interaction ..." tabs, and select them back.

Hi, I've closed my Editor and Script windows in my pre-processor, how could I get them back?
Many thanks
